NATURAL GAS CHP POWER PLANTS

Series "Piemonte"

Natural gas CHP Power Plants

Natural gas CHP power plants with use of high electrical efficient reciprocating engines (Otto cycle) combined with recovery boilers. High reliability Power Plant model suitable for district heating plants with electrical power higher than 4 MWel. Can be further enhanced upon request through integrated fresh-air module and/or integration boilers up to a maximum thermal power of 10 times that of electric power. For a good profitability, district heating shall not cost more than € 800,000 for each nominal MWt installed with 40% more selling thermal energy than that deliverable.

- Electric Power 0,25 to 10 MWel.
- Thermal power: 0.25 to 100 MWt.
- Cycle: CHP Otto simple or combined.
- Fuel: natural gas.
- Feasibility study reference: PIEM1, PIEM2.
- Max electric efficiency: 45%
- Max overall efficiency: > 85%.
- Certification: CE / PED as a whole.

Range

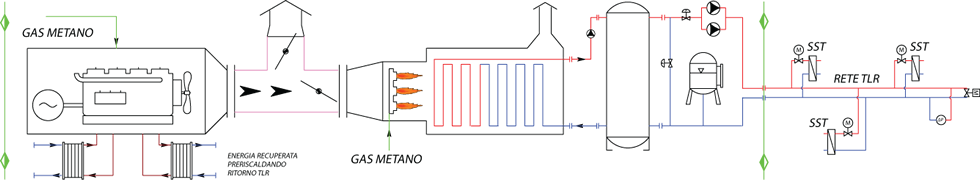

Mod. Piemonte 1

Natural gas CHP power plants (simple Otto cycle) with District Heating module.

POS. MODEL Nominal Electric Power
(MWel)
Thermal Power with flue
gases at 90°C
(MWt)
Max Thermal Power with
Integration Boiler
(MWt)
Electric Efficiency
(%)
Overall Efficiency
(%)
13 Piemonte 1 - 250 0,25 0,26 3 38 85
15 Piemonte 1 - 500 0,5 0,51 5 39 86
17 Piemonte 1 - 1000 1 1,02 10 40 88
19 Piemonte 1 - 2000 1,9 2 19 42 90
23 Piemonte 1 - 4000 3,9 3,8 39 43 90
24 Piemonte 1 - 6000 5,8 5,7 58 44 90
25 Piemonte 1 - 8000 7,8 7,7 78 44 92
26 Piemonte 1 - 10000 10 10,1 100 44 92

piemonte 1

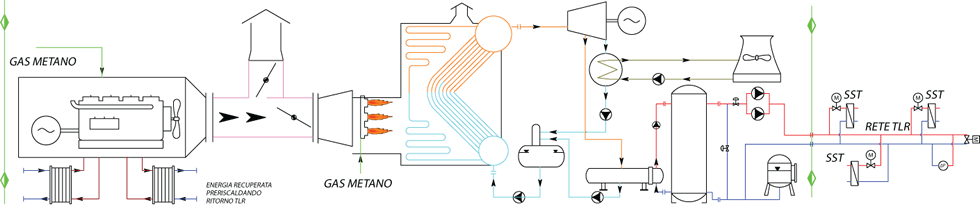

Mod. Piemonte 2

Natural gas CHP power plants (combined Otto/Rankine cycle) with District Heating module. 5 to 21 MWel and 4 to 17 MWt power ranges. Possible integration with extra boilers up to 200 MWt.

piemonte 2

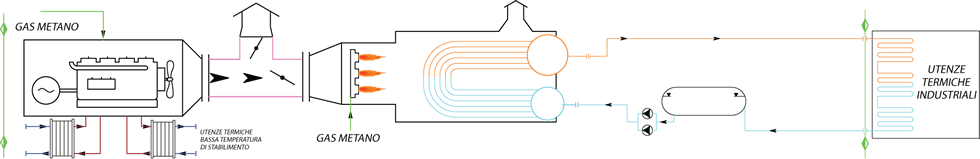

Mod. Piemonte 3

Natural gas CHP power plants (simple Otto cycle) with industrial steam generation module. 4 to 18 MWel and 5 to 22 MWt power ranges. Fresh-air system possible integration.

piemonte 3

Working condition

  HOT WATER SUPERHEATED WATER COOLING
THERMAL DESIGN
DISCTRICT HEATING CIRCUIT
90/65°C 115/65°C 7/11°C
MECHANICAL DESIGN
DISCTRICT HEATING CIRCUIT
PN16÷PN25 PN16÷PN25 PN16÷PN25
THERMAL DESIGN
SUBSTATIONS SECONDARY CIRCUIT
85/55°C 85/55°C 14/8°C
NOMINAL PRESSURE LOSS
SUBSTATIONS PRIMARY AND SECONDARY CIRCUITS
10/3 w.c.m. 10/3 w.c.m. 10/3 w.c.m.
FLUID SPEED
DISCTRICT HEATING CIRCUIT
0,5÷2 m/s 0,5÷2 m/s 0,5÷2 m/s
CENTRAL CONDUIT PUMPS HEAD 0,5÷9 bar 0,5÷9 bar 0,5÷9 bar
PRESSURE LOSS POWER PLANT INNER CIRCUIT 0,5÷1,5 bar 0,5÷1,5 bar 0,5÷1,5 bar
