DISTRICT HEATING EMERGENCY MOBILE POWER PLANTS
Series "Rosenheim"
Emergency Mobile Power Plant

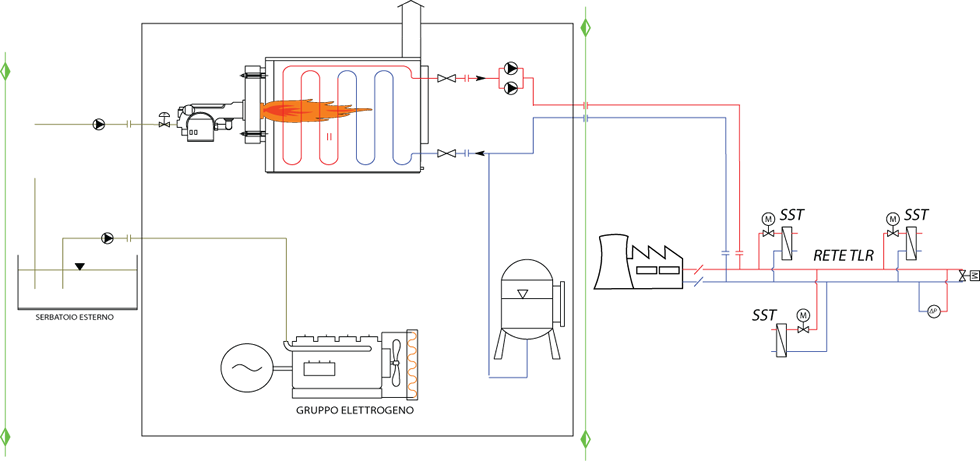

District Heating networks emergency mobile Thermal Energy generation Power Plants. Built in one or more modules depending on power value. Complete with heat production boiler, pump and expansion groups, generator and fuel tanks.

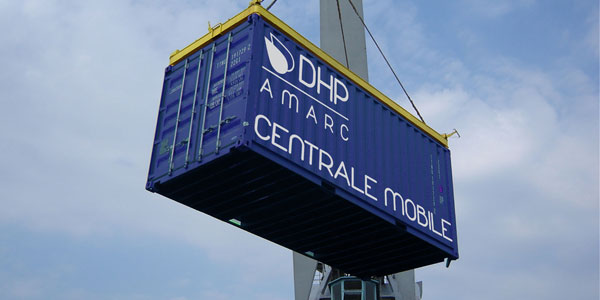

This power plant model, fully transportable, autonomous and independent, is suitable for temporary installation on networks or for users not yet provided with the district heating service.
- Thermal Power: 0,5 to 4 MWt
- Pumping: 10 to 50 m³ / h
- Hydraulic design: PN16
- District Heating max T: 95 ° C
- Cycle: boiler + Diesel
- Fuel: Diesel
- Certifications: CE / PED as a whole
Range
Mod. Rosenheim
District Heating Emergency Mobile Power Plants.
| POS. | Model |
Thermal Power (MWt) |
Electric Power (kWel) |
Modules # |
Working Time range (h) |
Nominal Flow Rate (m³/h) |
Hydraulid Design |
District Heating max Temp (°C) |
|---|---|---|---|---|---|---|---|---|
| 61 | Roseneim - 500 | 0,5 | 50 | 1 | 7 | 20 | PN16 | 95 |
| 62 | Roseneim - 1000 | 1 | 100 | 1/2 | 7 | 40 | PN16 | 95 |
| 63 | Roseneim - 2000 | 2 | 200 | 1/2 | 7 | 80 | PN16 | 95 |
| 64 | Roseneim - 3000 | 3 | 300 | 2 | 7 | 120 | PN16 | 95 |
| 65 | Roseneim - 4000 | 4 | 400 | 2 | 7 | 160 | PN16 | 95 |
Working condition
| HOT WATER | SUPERHEATED WATER | COOLING | |
|---|---|---|---|
|
THERMAL DESIGN DISCTRICT HEATING CIRCUIT |
90/65°C | 115/65°C | 7/11°C |
|
MECHANICAL DESIGN DISCTRICT HEATING CIRCUIT |
PN16÷PN25 | PN16÷PN25 | PN16÷PN25 |
|
THERMAL DESIGN SUBSTATIONS SECONDARY CIRCUIT |
85/55°C | 85/55°C | 14/8°C |
|
NOMINAL PRESSURE LOSS SUBSTATIONS PRIMARY AND SECONDARY CIRCUITS |
10/3 w.c.m. | 10/3 w.c.m. | 10/3 w.c.m. |
|
FLUID SPEED DISCTRICT HEATING CIRCUIT |
0,5÷2 m/s | 0,5÷2 m/s | 0,5÷2 m/s |
| CENTRAL CONDUIT PUMPS HEAD | 0,5÷9 bar | 0,5÷9 bar | 0,5÷9 bar |
| PRESSURE LOSS POWER PLANT INNER CIRCUIT | 0,5÷1,5 bar | 0,5÷1,5 bar | 0,5÷1,5 bar |
